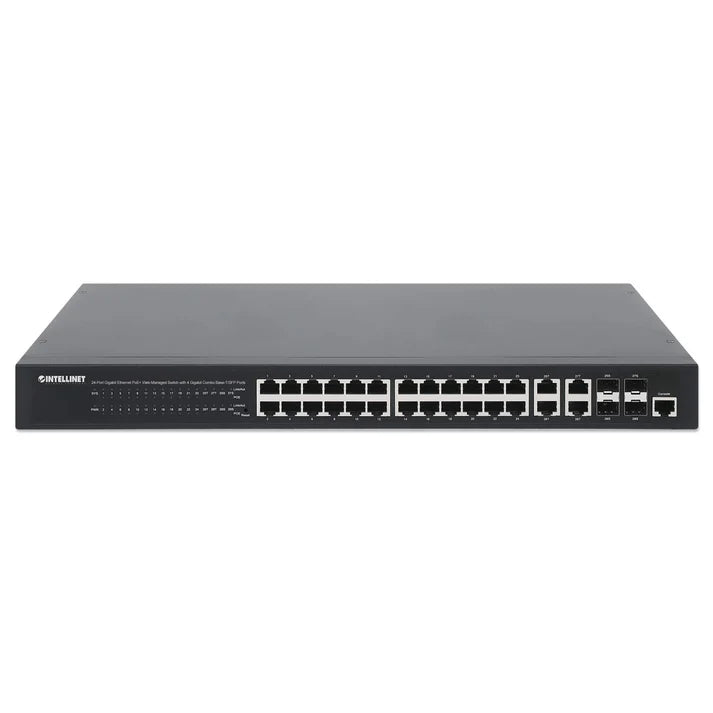

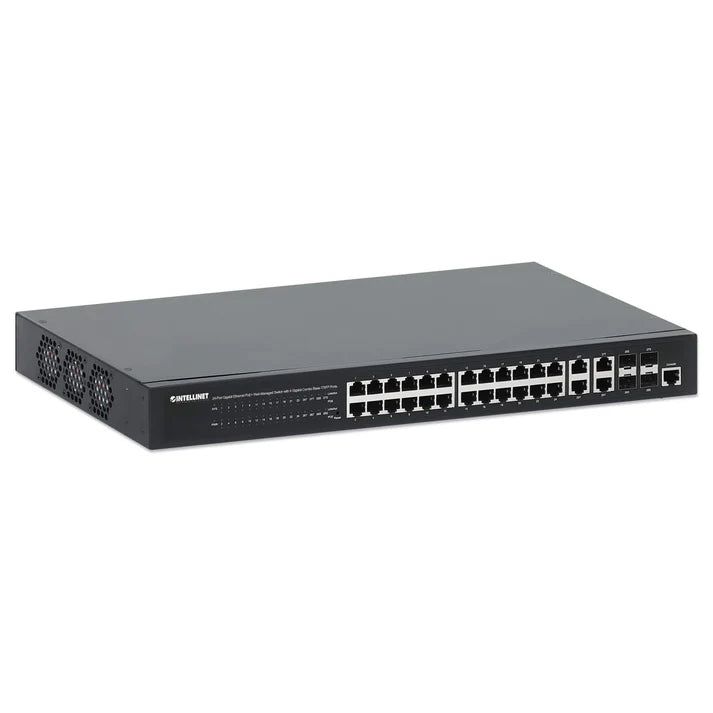

Intellinet 24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 Gigabit Combo Base-T/SFP Ports

24-Port Gigabit Ethernet PoE+ Web-Managed Switch with 4 Gigabit Combo Base-T/SFP Ports

Features

• Provides power and data connection for up to 24 PoE network devices
• Saves installation costs by delivering data and power over existing network cables
• 10/100/1000 Mbps auto-sensing ports automatically detect optimal network speeds
• Console port for configuring via computer
• Four combo small-form-factor pluggable GBIC module slots (SFP) and four RJ45 copper uplinks
• IEEE 802.3at/af-compliant RJ45 PoE/PoE+ output ports
• Power output up to 30 watts per port*
• PoE power budget of 370 watts
• Supports IEEE 802.3at and IEEE 802.3af-compliant PoE devices (wireless access points, VoIP phones, IP cameras)
• Supports IEEE 802.3at/af detection and short circuit, overload and high-voltage protection
• All RJ45 ports equipped with Auto-MDIX and auto-negotiation support
• The Powered Device Monitor feature (PDM) restarts any connected PoE device that fails to respond or send out network traffic.
• Web-based configuration
• Remote reboot/restart
• Supports SNMP management
• Supports VLAN (protocol-based and port-based)
• Supports link aggregation (trunking)
• IGMP Snooping for multicast filtering
• Supports bandwidth control per port
• Supports port mirroring
• Supports two types of QoS: IEEE 802.1p and DSCP
• Broadcast storm control with multicast packet rate settings
• Supports jumbo frames up to 9.6 kBytes
• Store and forward switching architecture
• Full/half duplex operation
• IEEE 802.3x flow control for full duplex
• Supports 8k MAC address entries
• LEDs for power, link/activity and PoE
• Two high-volume cooling fans to ensure perfect ventilation
• Includes 19" rackmount brackets
• Three-year warranty
